Odenthal EZ Set Engine Mount 5 degrees

Odenthal EZ Set Engine Mount 5 degrees

Odenthal
$245.00
(No reviews yet)
To determine correct clamp size, use a caliper:
1. Measure frame rail diameter
2. Measure distance outside to outside where motor will go
3. Subtract total distance from rail diameter
Example: 122mm - 30mm = 92mm
Choose Clamp: 30mm x 92mm
Current Stock:
Adding to cart… The item has been added
Description

Odenthal EZ Set Engine Mount - 5 Degree

The Odenthal EZ Set Engine Mount - 5 Degrees.  For use with engines:

  • Iame X30
  • Iame KA100
  • Iame Swift
  • Rotax
  • ROK
  • Leopard

Features

  • Includes base plate with slider mechanism that makes chain adjustments a breeze
  • Top plate (Upper Mount) angled at 5 Degrees
  • CNC Machined from high-quality billet aluminum and anodized black
  • All mounts come with hardware

Includes

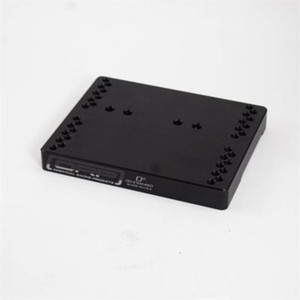

  • Odenthal EZ Set 5 Degree Upper Mount
  • Odenthal EZ Set Base Plate
  • 4 - 10mm Threaded Bolts
  • 2 - 10mm Washers
  • 2 - 8 x 35mm bolts to bolt engine to top plate

Clamp Size

The Odenthal Mounts are available with different size standard motor mount clamps.  To determine which size clamp is needed, use this procedure using a caliper measuring tool:

  1. Measure the frame rail diameter.  This will either be: 28mm, 30mm, or 32mm
  2. Where the motor mount will go, measure the distance between the 2 rails - outside to outside.  (Example: 124mm)
  3. Subtract the Distance from the rail diameter.  (Example: 122mm - 30mm = 92mm)
  4. The clamp size needed in this example is: 30mm x 92mm
