Tillett Seat Fitting Ultra Low Profile Hardware Kit

(No reviews yet)
Current Stock:
Adding to cart… The item has been added

Tillett Seat Fitting Ultra Low Profile Hardware Fitting Kit

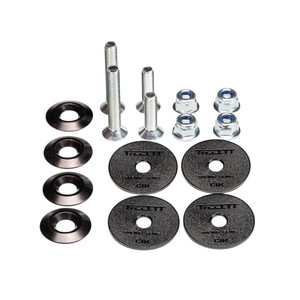

Complete a full fitting of your Tillett Seat with this Tillett Seat Fitting Kit.  Contains bolts for 4 main stays and 4 extra seat stays, including 8 of Tillett's stainless low profile washer.  It also includes a nylon washer spacer kit so that you have every combination of spacer required to fit a kart seat.


  • 2 - 70mm Stainless low profile bolts
  • 2 - 30mm Stainless low profile bolts
  • 4 - 25mm Stainless low profile bolts
  • 8 - 8mm x 25mm Stainless ultra low profile washers
  • 8 - 8mm flanged Ny-lock nuts
  • 10 - 40mm diameter x 2mm thick Nylon spacer washers
  • 10 - 40mm diameter x 4mm thick Nylon spacer washers
  • 2 - 40mm diameter x 10mm thick Nylon spacer washers

The incredibly flat bolt and washer combination does not destroy you race suit, your rib protector, or your body. They enable you to tighten the seat bolts without fear of the washer pulling through, as they often do with plastic countersunk washers, or bottoming out as they can do will regular steel washers. The design of the washer is such that it allows the head of the bolt to twist in the washer which stops the seat from breaking during the twisting forces generated by the chassis.
